Shanghai or Long Beach shippingVolume pricing availableCompatibility review
PRODUCT / 01
Wet inlayWhite card
CTID-G1-UHFGeneration 1 Changeable TID UHF RFID Tags
CONFIRMED PRODUCT INFORMATION
Specifications at a glance
Use these supplier-provided specifications to shortlist the product, then validate the exact workflow with samples in your own environment.
Product forms
Wet inlay and white card
Frequency
UHF 860–960 MHz; nominal carrier 915 MHz
Protocol
UHF EPC G2 / ISO 18000-6C
Compatible IC
Compatible special-purpose UHF RFID IC
Memory
EPC 96 bits; User 512 bits

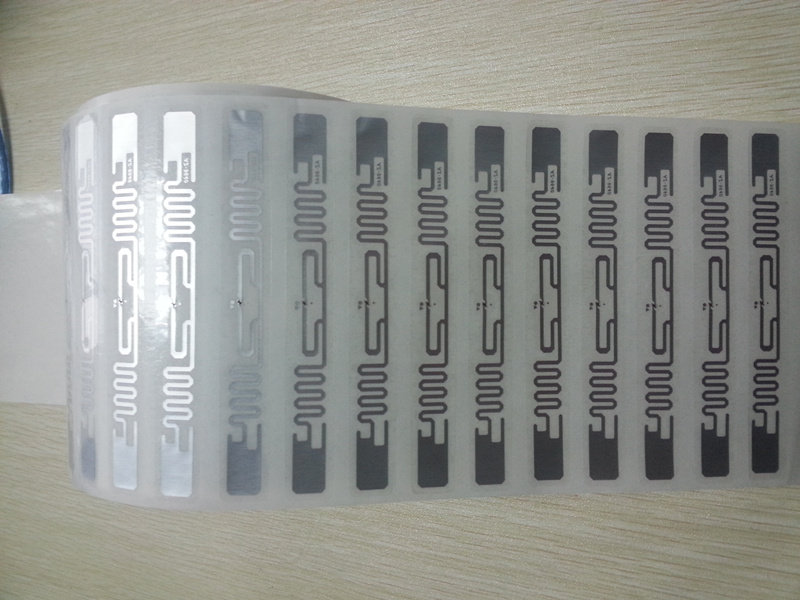

Wet-inlay size
100 × 15 mm

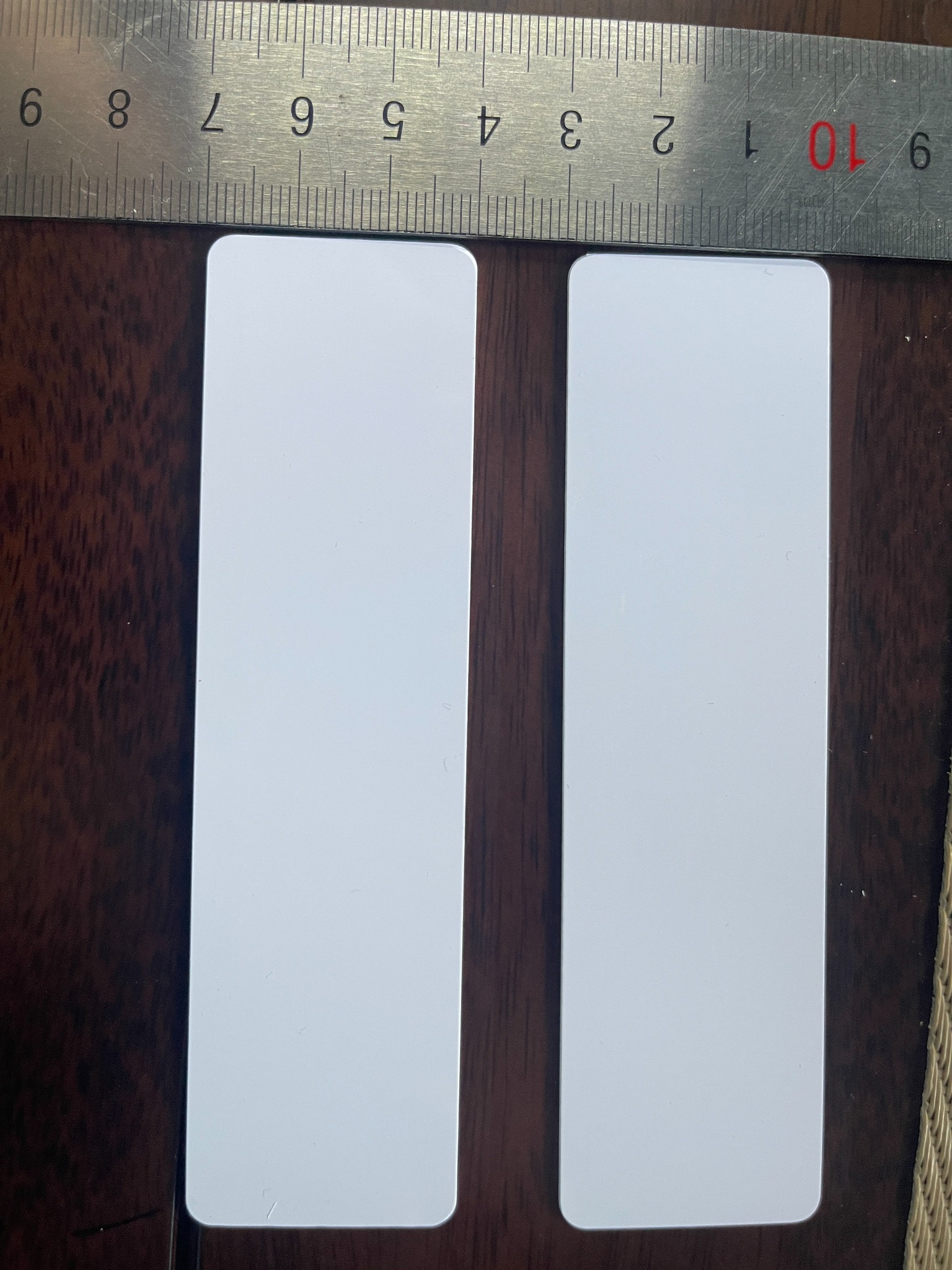

White-card size
110 × 30 mm
Listed prices
USD 8 per wet inlay; USD 11 per white card
Construction
PET substrate, etched aluminum and double-sided construction; flip-chip bonding and lamination
Operating conditions
−20 to +50 °C; 20–90% RH
Storage conditions
−40 to +70 °C; 20–90% RH
Indicative range
0.1–10 m in supplier tests; no distance guarantee
Wet-inlay packing
ESD bag; single row, 5,000 pieces per roll
Shipping origin
Shanghai, China, or Long Beach, California, USA, depending on inventory and quotation
* Technical and comparison claims are supplier-provided. Range, compatibility, memory behavior, locking and regulatory fit must be verified by the buyer; the stated 0.1–10 m range is not guaranteed.
ENGINEERING WORKFLOW
What this product is designed to do
01
Supported TID programming
Use the special-purpose tag in a supported, authorized TID read/write workflow. Confirm the exact writable range and commands with a sample.
02
EPC and User memory
The supplied specification lists EPC 96-bit and User 512-bit memory together with EPC Gen2 / ISO 18000-6C communication.
03
Custom engineering
Antenna, lawful encoded data and authorized functions can be reviewed for customization.
BEFORE YOU ORDER
Five details that make a quotation faster
Including these details helps avoid the most common compatibility and delivery assumptions.
01
Use a high-power UHF reader and test the exact reader, antenna, firmware and software before ordering quantity.
02
Expect a short working distance that may be much lower than a conventional factory-fixed-TID tag.
03
Confirm whether you need the 100 × 15 mm wet inlay or the 110 × 30 mm white-card construction.
04
State the destination, quantity, permitted frequency band and authorized test or integration purpose.
05
Confirm packaging, return terms and outbound/return freight responsibility in the quotation.
COMPLETE THE WORKFLOW
Compare the Generation 2 dry inlay
Generation 2 is supplied as an 80 × 45 mm dry inlay and is reported to improve read/write performance over the Generation 1 format.
Understand, test and select changeable-TID hardware
Start with the standard memory model, then examine special behavior, prove it on your reader and check whether a standard memory bank would be the better design.
PRODUCT FAQ
Questions buyers ask before sampling
Is Generation 1 a standard factory-fixed-TID tag?+
No. It is a special-purpose experimental tag offered for supported changeable-TID testing. Standard UHF RFID tags normally use a factory-assigned TID.
What formats and prices are available?+
Generation 1 is offered as a 100 × 15 mm wet inlay at USD 8 per unit and a 110 × 30 mm white card at USD 11 per unit. Volume pricing is available.
Is 10 meters guaranteed?+
No. The 0.1–10 m figure is an indicative supplier-test range, not a promise. Actual performance may be short and depends heavily on reader power, antenna, placement, orientation and RF conditions.
What reader should I use?+
A high-power compatible UHF reader is recommended. Desktop and low-power passage readers may perform poorly or fail, so test your exact device first.
Where does the order ship from?+
Orders may ship from Shanghai, China, or Long Beach, California, USA, depending on inventory, product format and the agreed quotation.
◇
For authorized testing, research, migration, and OEM integration only. Not offered for impersonation, unauthorized duplication, access-control bypass, counterfeiting, or toll and parking evasion. Buyers must confirm applicable law, spectrum rules, standards, and third-party rights.
REQUEST A SAMPLE OR QUOTE
Tell us about your application
Share the quantity, destination, reader or host system, and relevant technical requirements. Company and authorized use case remain optional.
